Greenhouse Shutter Mount Exhaust Fans

Exhaust Fans for Hoop Houses

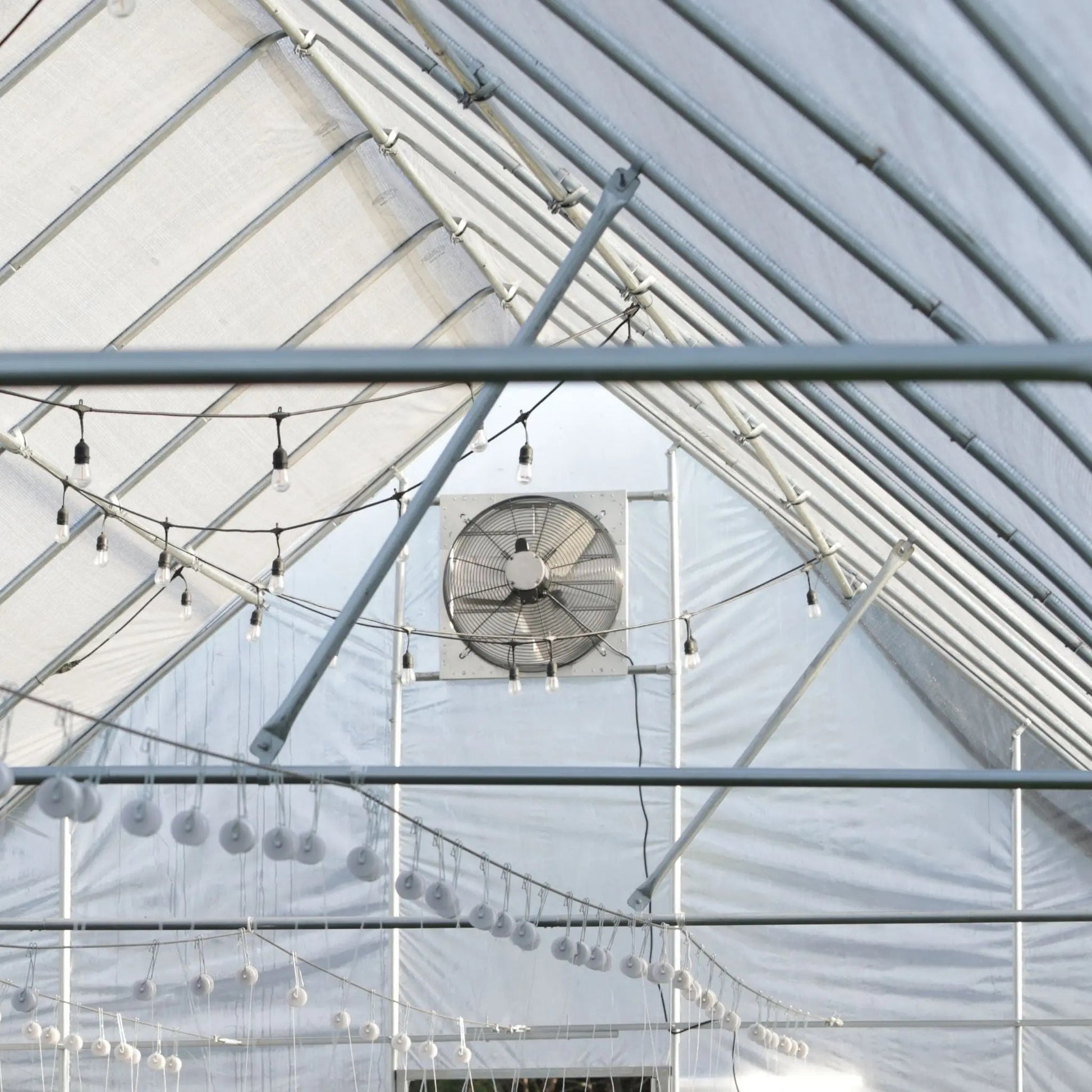

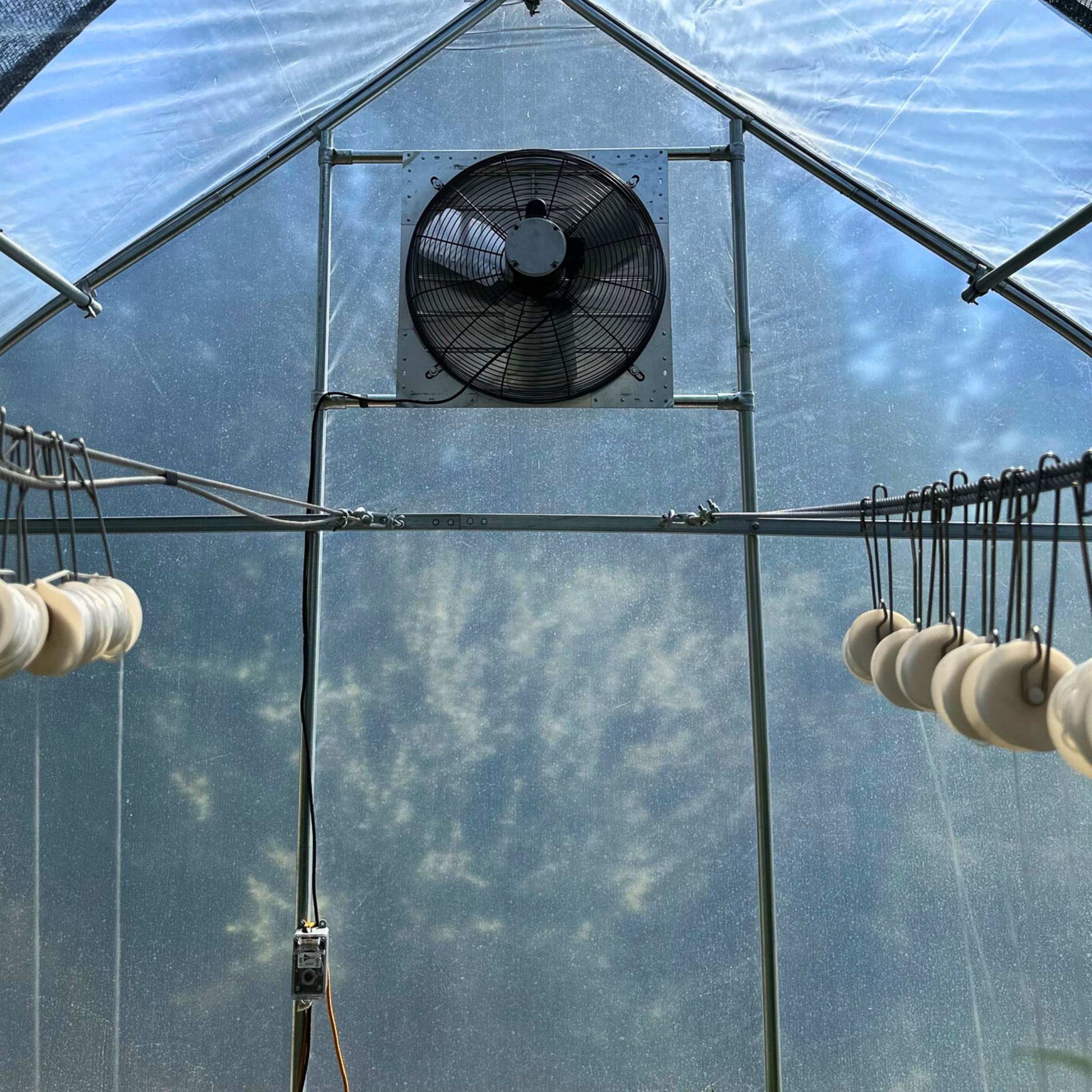

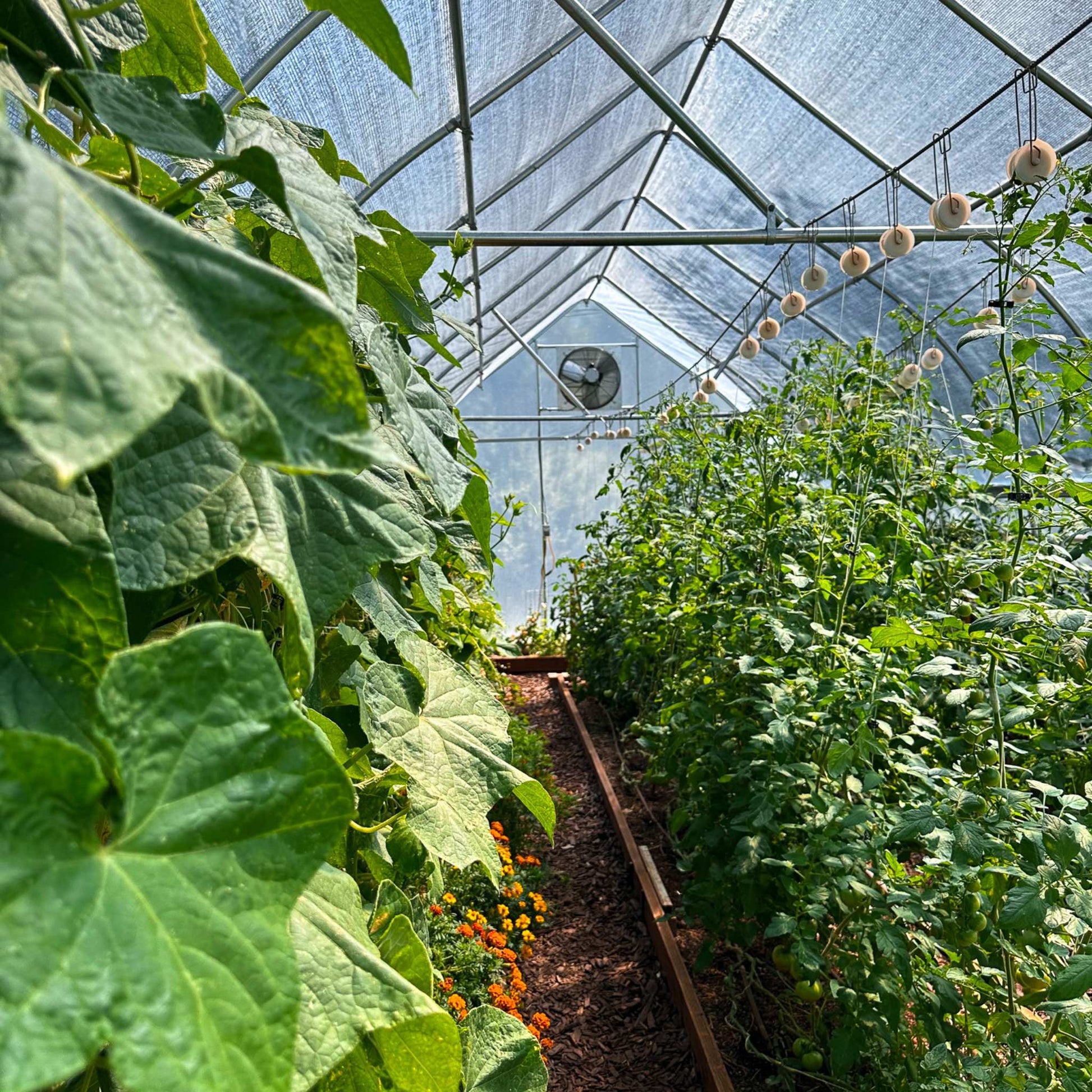

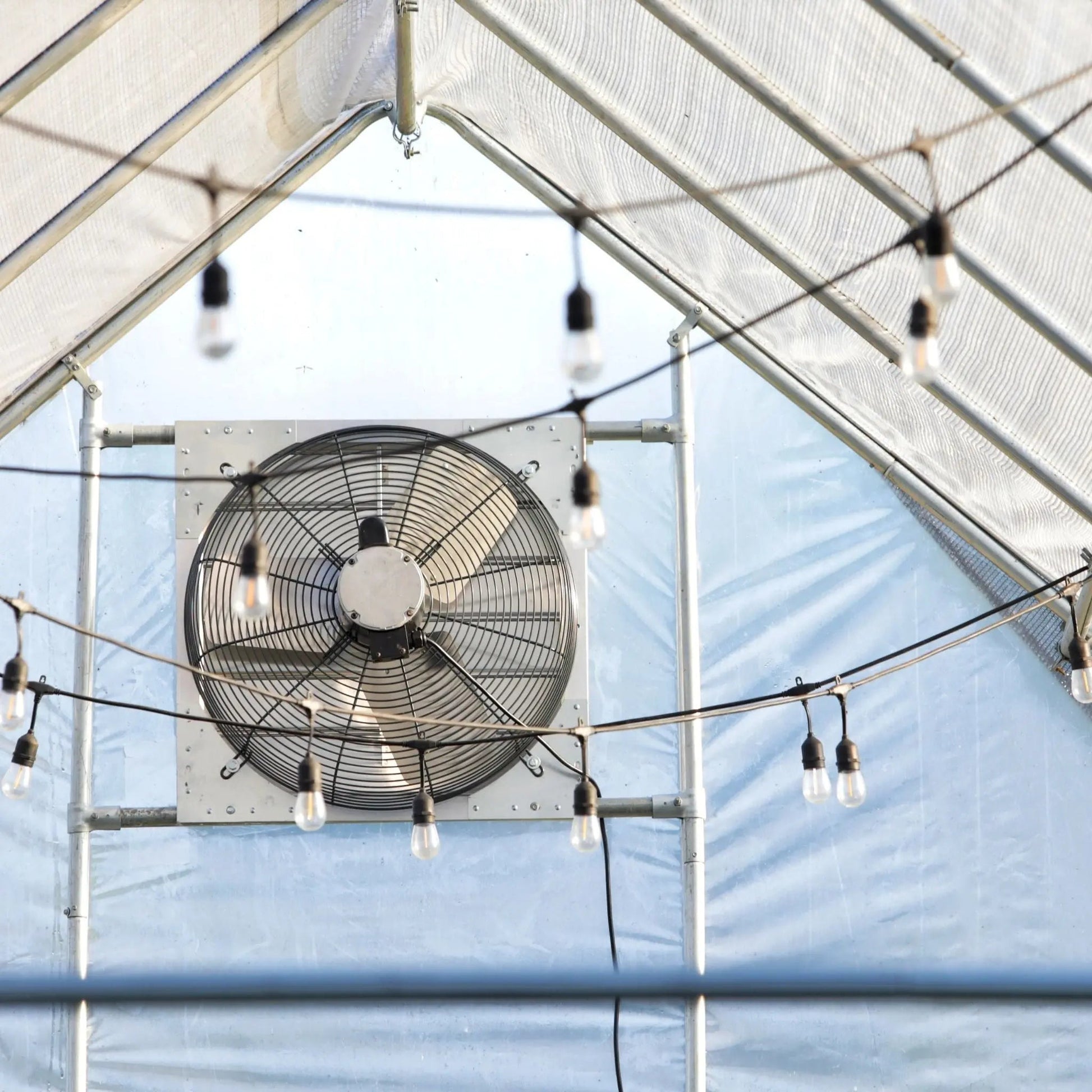

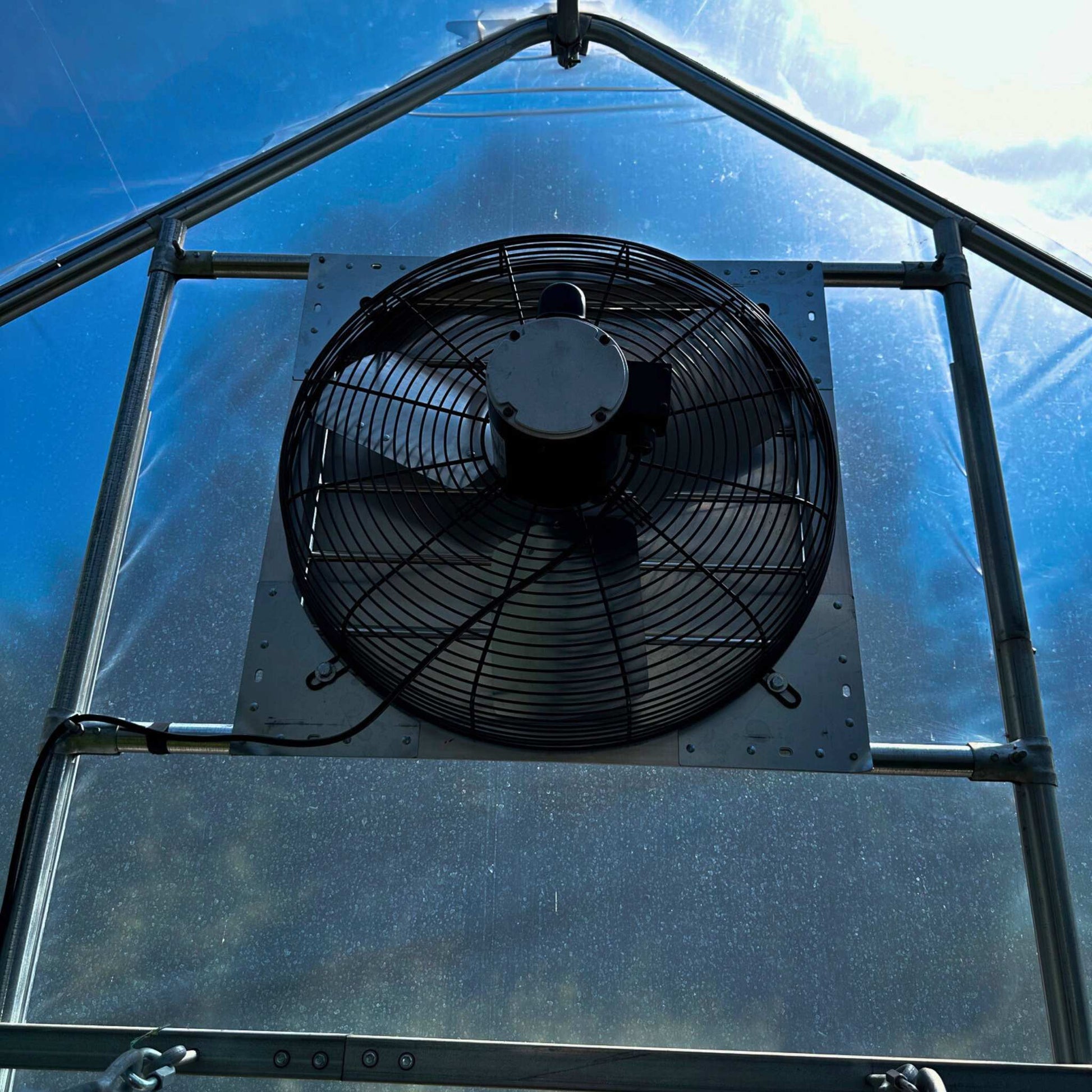

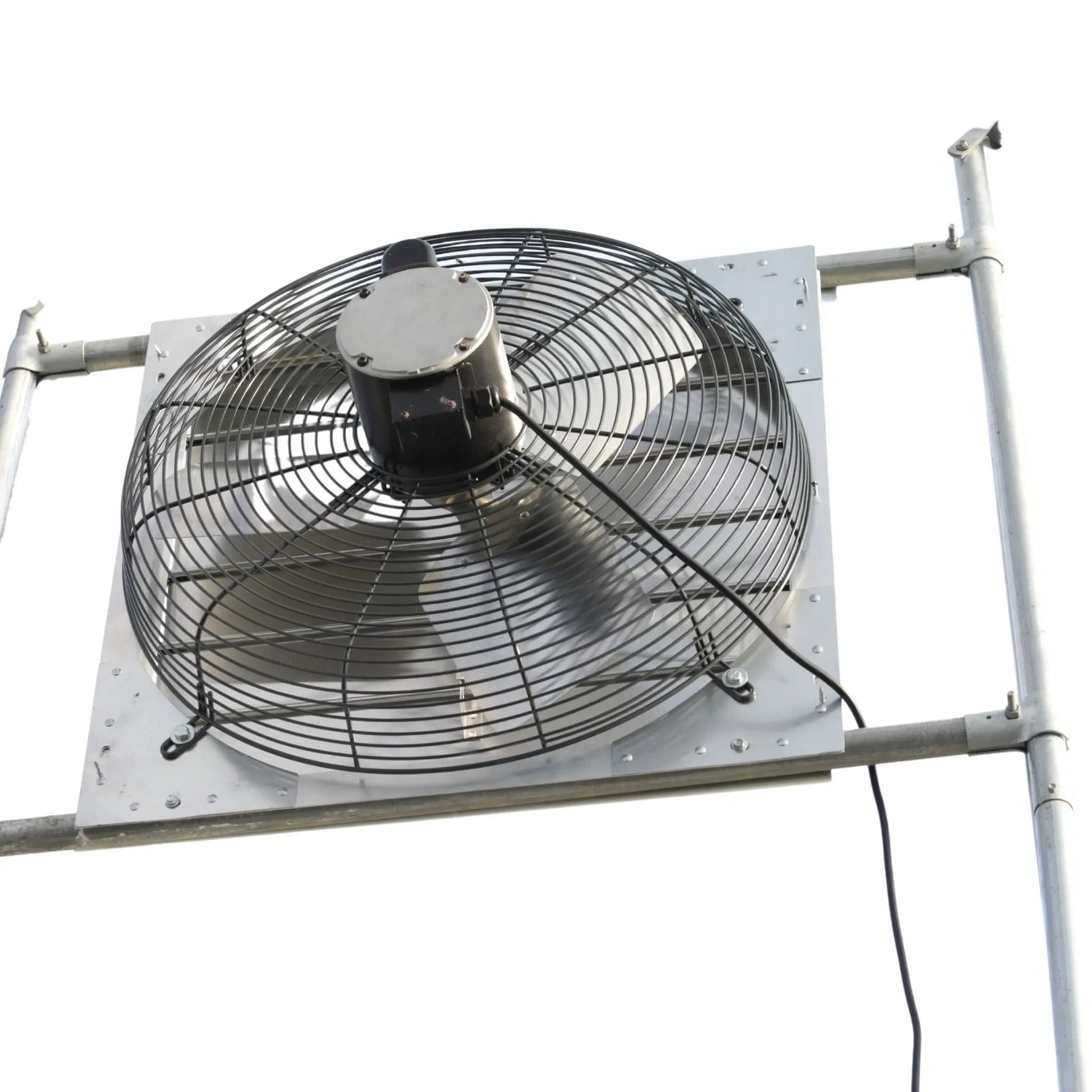

Are you looking to control rising temps in your greenhouse or hoop house? Install a 12" , 24" , or a 36" high-efficiency, quiet operating exhaust shutter fan. These exhaust fans are pre-wired with a 9ft grounded cord—115v. Guards feature industrial gray polyester powder coating and OSHA spacing on guards.

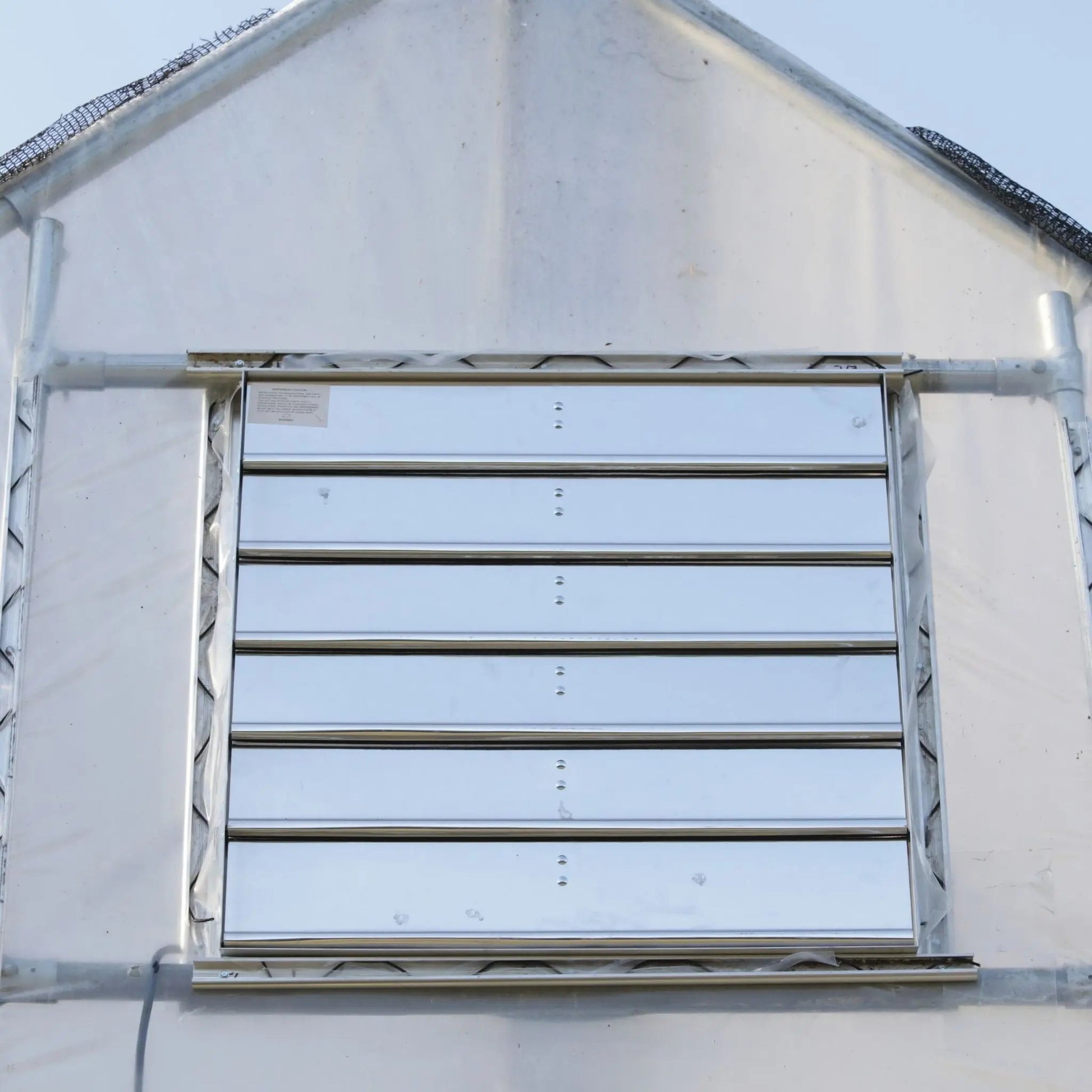

The heavy-duty aluminum shutters on the fans have reinforced corners featuring weather stripping on each louver. We recommend adding intake shutters on the opposite side of the hoop house for fresh air exchange.

Motor Type: TEAO, IP55 rating All shutter fans: 115v

*** Optional thermostat, spring wire & lock channel & hardware kit for installation on a hoop house.

12” SHUTTER FANS

• 900 High CFM
• 12” Shutter
• 12.5”x12.5” Rough Opening
• 12” 3 Wing Fan
• Single Phase
• 1/15 HP
• 115 Volts
• 1.0 High Amps

24” SHUTTER FANS

• 4450 High CFM
• 24.5” Shutter
• 24.5" X 24.5" Rough Opening
• 24” 3 Wing Fan
• Single Phase
• 1/3 HP
• 115 Volts
• 3.2 High Amps

• 8860 High CFM
• 36.5” Shutter
• 36.5" X 36.5" Rough Opening
• 36” 3 Wing Fan
• Single Phase
• 1/2 HP
• 115 Volts
• 5.6 High Amps

Shutter exhaust fans are constructed to industrial application standards with corrosion-resistant extruded aluminum frames, which will not rust on any mounting surface, even when exposed to the harshest elements.

The 1.5-inch W flanges on the shutters make the unit easy to install. Louvers are constructed with light aircraft-grade aluminum alloy for minimal air resistance. The prop is constructed with 5052 aluminum alloy engineered to precise geometry for quietness and air-moving efficiency.

Features

• Non-rusting extruded aluminum shutter frame
• Shutters automatically open and close
• Corrosion-resistant, baked powder painted guards tested to 500-hour salt spray
• Includes a 9 ft. corded plug for easy connection
• Hi-efficiency 100% copper-wound motors with permanently lubricated ball bearings
• Totally enclosed, air-over motors, IP155 rated

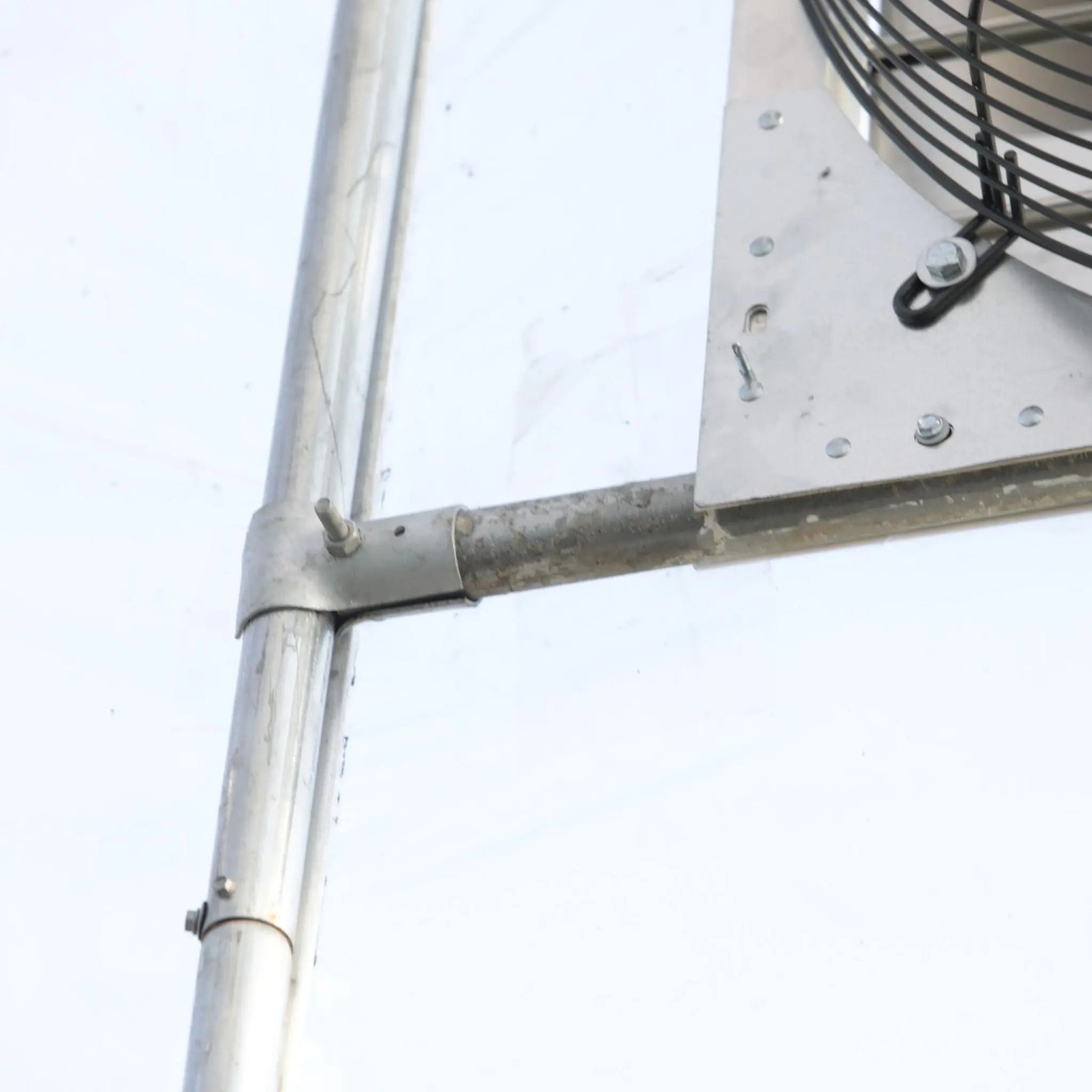

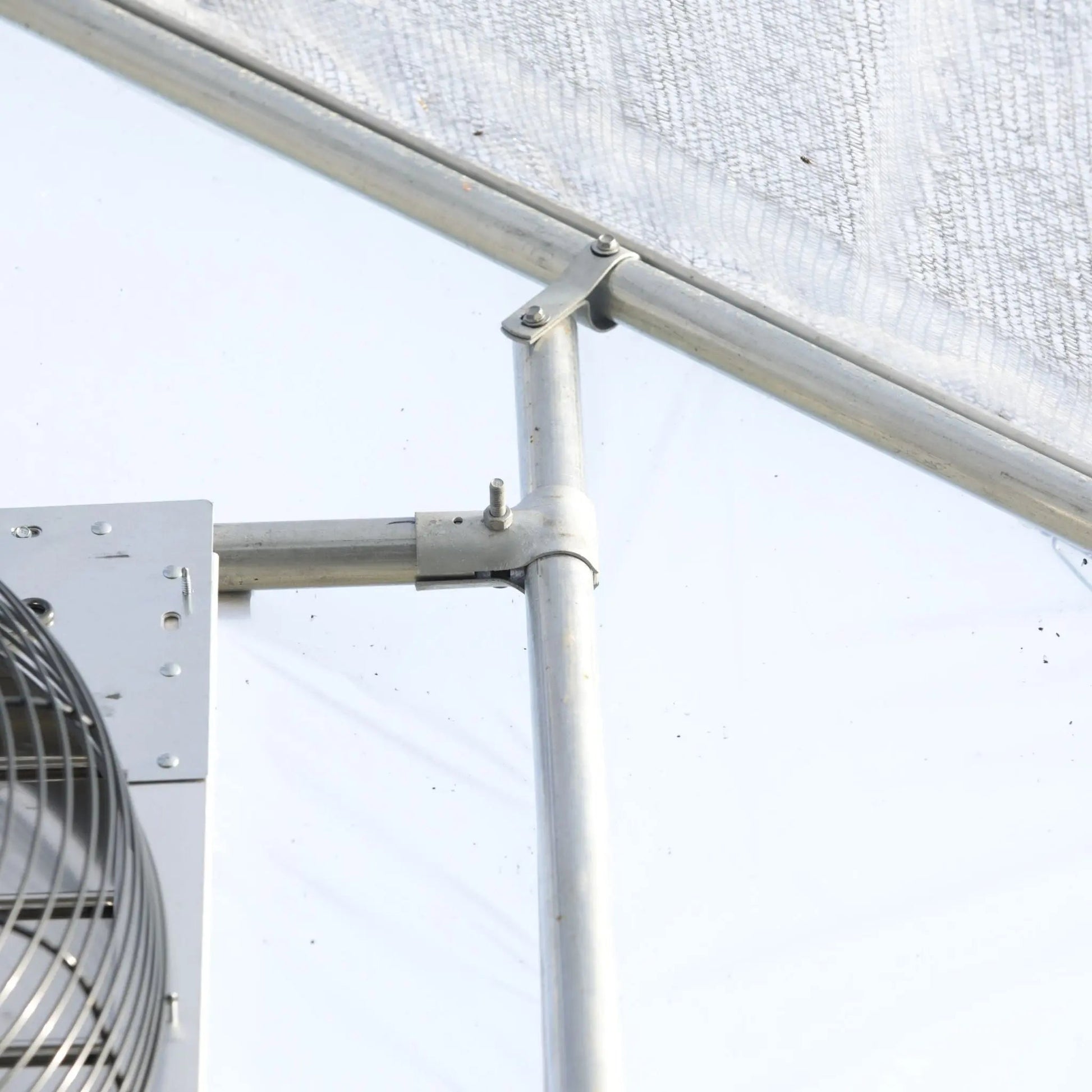

• Fully assembled, easy-to-mount pre-drilled flange patterns
• UL 705 safety certified
• California residents See Prop 65 Warnings
• 5052 light, aircraft-grade, aluminum alloy louvers for the least air resistance

GREENHOUSE VENTILATION CALCULATOR
The University of Massachusetts recommends that your total fan capacity should be 2 times the floor area of your greenhouse. Fan capacity is measured in cubic feet per minute (CFM) of air moved. So in a 30' x 100' greenhouse, the fan capacity should be 30' x 100' x 2 = 6000 CFM.
